HOPPER BASE

It can be used for pellet containers made on site for direct extraction with boiler screw.

  • Share:

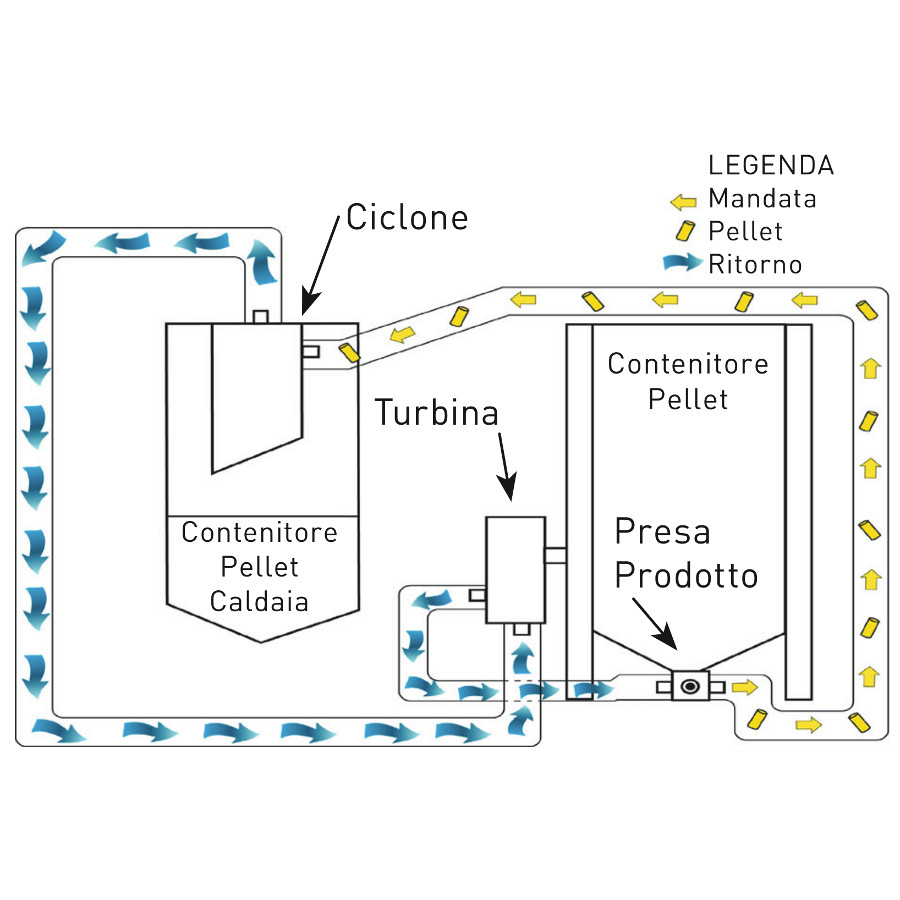

GEO PTS PELLET INTAKE SYSTEM

Composed by: hopper, vacuum motor, elettronic control unit, kit timer. NOT INCLUDED: suction probe and pipeline.

  • Share:

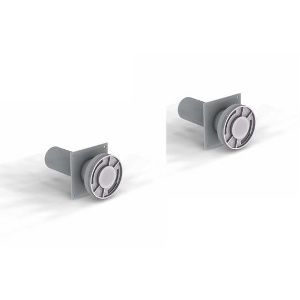

GEO-BKA-4-2 VL STORZ

FILLING SYSTEM GEO-BKA 4-2 VL:
● 2 filling and extraction necks 4”
● incl. mountings, 2 Storz-A couplings, caps and clips
● flange system for possible extension

  • Share:

GEOBOX BAG INDOOR STORAGE

The GEObox BAG is the standard solution for filling manually for basement rooms where the connection with the boiler will be made via a vacuum suction system, an angled screw conveyor or a coreless worm screw.

  • Share:

Description

Characteristics: filling with pellet bags, galvanised, height adjustable steel frame, galvanised steel cone, silo made of high-strength, antistatic plastic material – top side open, mounting material, possibility to upgrade via retrofit kit to a GEObox with automatic filling

Technical data GEObox BAG
Type no. Volume Storage quantity Height Dimensions
GEObox BAG 12 up to 1,3 m3 up to 830 kg* 136 cm 120 x 120 cm
GEObox BAG 17 up to 2,3 m3 up to 1500 kg* 136 cm 170 x 170 cm
GEObox BAG 21 up to 3,2 m3 up to 2100 kg* 136 cm 210 x 210 cm
GEObox BAG 25 up to 4,6 m3 up to 3000 kg* 136 cm 250 x 250 cm

* standard values

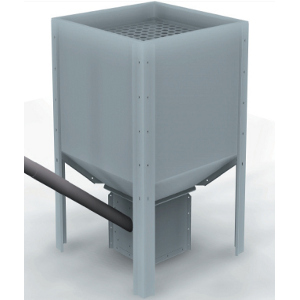

GEOBOX S INDOOR STORAGE

Pellet drawing directly using the boiler’s auger

  • Share:

Description

  • Ideal solution for the supply of boilers;
  • bucket of galvanized steel with steel cone;
  • grid protection for children;
  • Manual filling with bags.
Technical data GEObox S
Type no. Volume Storage quantity Height Dimensions
GEObox S 1000/L 0,84 m3 540 kg 130 cm 100 x 100 cm

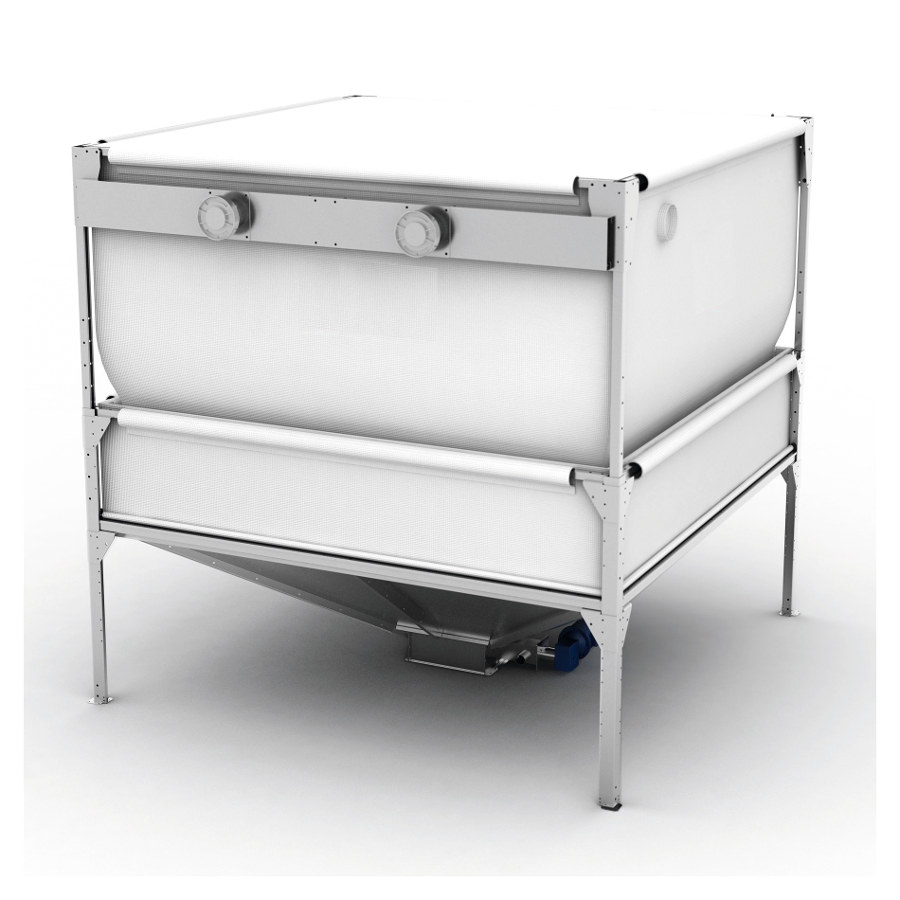

GEOBOX STANDARD INDOOR STORAGE

Pellet drawing with an intake system. The GEObox is the standard solution for the usual basement rooms where the connection with the boiler will be made via a vacuum suction system, an angled screw conveyor or a coreless worm screw.

  • Share:

Description

Characteristics: Height-adjustable steel frame, galvanized steel cone, Fabric silo made of high-stregth, anti-static woven plastic material. Filling and extraction necks (with possible extensions)

Technical data GEObox
Type no. Volume Storage quantity Height Dimensions
GEObox 12 1,7 – 2,6 m3 1,1 – 1,7 t* 180 – 250 cm 120 x 120 cm
GEObox 17 3,1 – 5,2 m3 2,1 – 3,2 t* 180 – 250 cm 170 x 170 cm
GEObox 21 4,5 – 7,5 m3 2,8 – 4,7 t* 180 – 250 cm 210 x 210 cm
GEObox 25 6,4 – 11,0 m3 4,2 – 6,7 t* 180 – 250 cm 250 x 250 cm
GEObox 29 9,6 – 14,1 m3 6,0 – 9,0 t* 190 – 250 cm 290 x 290 cm
GEObox 17/29 5,7 – 8,3 m3 3,6 – 5,4 t* 190 – 250 cm 170 x 290 cm
GEObox 21/29 6,6 – 10,2 m3 3,8 – 6,1 t* 190 – 250 cm 210 x 290 cm

* depends on the pellet supplier

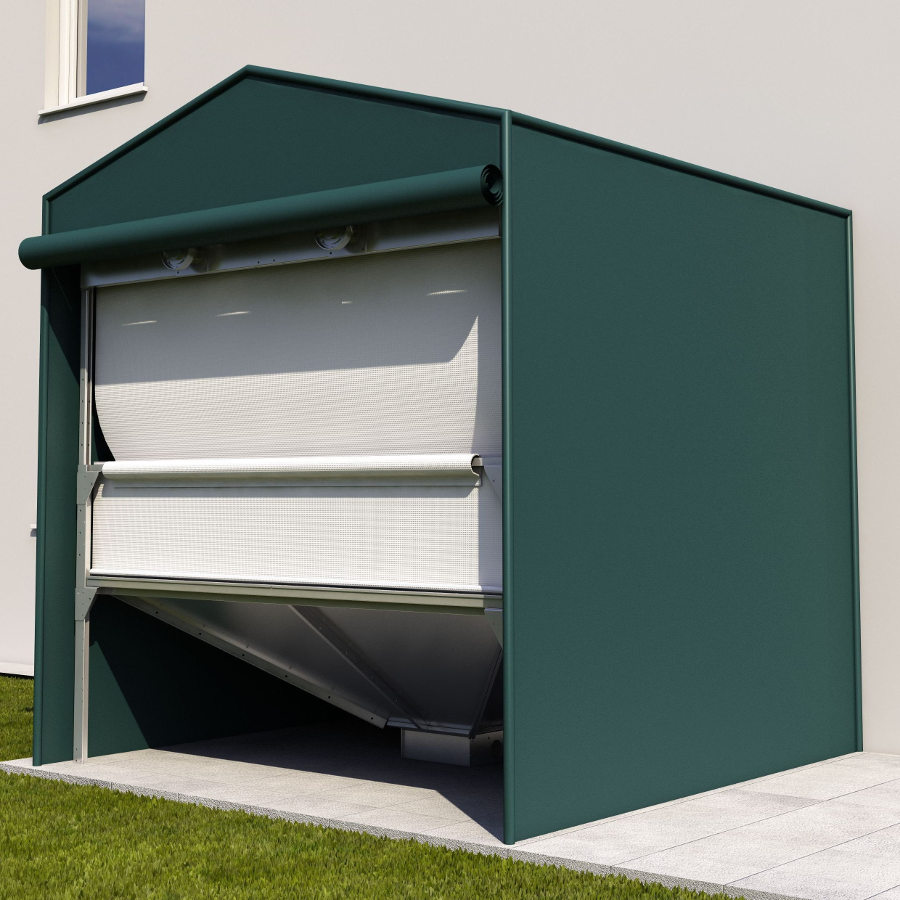

GEOCOVER OUTDOOR PELLET STORAGE COVER

The clever solution for storing pellets outside the house. The GEOcover EC is the clever solution for storing pellets outside the house. The GEObox Standard and Speed will be assembled outside the house and ptotected by the highly weather-resistant GEOcover EC.

  • Share:
geocover

Description

The GEOcover EC is the clever solution for storing pellets outside the house. The GEObox Standard and Speed will be assembled outside the house and ptotected by the highly weather-resistant GEOcover EC.

Characteristics:

  • extremly tear-resistant material with special roof design
  • frost resistant, UV-stabilised and 100% waterproof
  • available in several colours and sizes
  • easy mounting
  • retrofittable for existing GEOboxes.



Technical data GEOcover
Type no. GEObox abbinabile Dimensions Height centre Code
GEOCOVER 17 GEObox 17

GEObox 17 Speed

175 x 175 cm 280 cm GEOCOVER EC 17
GEOCOVER 21 GEObox 21

GEObox 21 Speed

215 x 215 cm 280 cm GEOCOVER EC 21
GEOCOVER 25 GEObox 25

GEObox 25 Speed

255 x 255 cm 280 cm GEOCOVER EC 25
GEOCOVER 29 GEObox 29

GEObox 29 Speed

295 x 295 cm 280 cm GEOCOVER EC 29

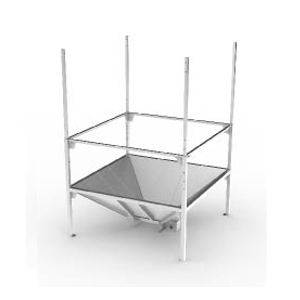

GEOFLEX INDOOR STORAGE

The GEOflex is the ideal solution for rooms of complex shape such as an attic or vaulted basement.

Characteristics: Height-adjustable steel frame, galvanized steel cone, Frame height 136 cm or 155 cm, Maximum installation height 250 cm, Sheathing towards side of building.

Note: The frame to be covered by the user.

  • Share:

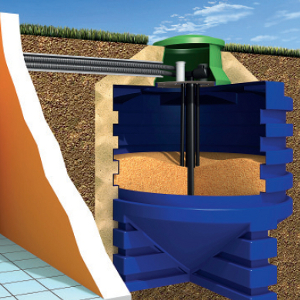

GEOTANK UNDERGROUND STORAGE TANK

Pellet drawing with an intake system. GEOtank – the tank with technology.

  • Share:

Description

Years of experience won by our GEOplast experts made them develop the GEOtank: The seamlessly manufactured tank is space-saving, inexpensive and easy to operate.

The heart of the GEOtank is a feed system which is a special development and compatible with all popular boiler brands.

The closed feeder air circuit prevents any mixing with the tank air, which could result in condensation.

Moreover, any electrostatic charging is discharged via the special plastic material.

Pellets and GEOtank are an excellent combination of natural energy carrier and perfected technology – everything is fully automated, clean and trouble-free.

Complete with drawing unit (GEO-A1/90F) and GEOBKA filling system.

Combined with GEO-PTS and GEO-PTS-OV suction system.

Technical data GEOtank
Type no. Volume Storage quantity Height Diameter Ø
GEOtank 8-T2 8 m3 fino a 4 t 290 cm 235 cm
GEOtank 11-T2 11 m3 fino a 6 t 370 cm 235 cm

MODULE GEOS-1000-E1

Modulo d‘estensione per GEObox S 1000. Il modulo rende possibile un’estensione in altezza di 30 cm su GEObos S (+ 0,3 m3 / + 195 kg).

  • Share:

Description

The module makes it possible to extend the height of 30 cm on GEObos S (+ 0.3 m3 / + 195 kg).



Technical data EXTENSION MODULE for GEObox S

Type

Volume

storable Q.ty

Height

Measures

GEOS-1000-E1

0,30 m3

195 kg

30 cm

100 x 100 cm
