SUPPLEMETARY PELLET HOPPER FOR “KOMPAKTA NEW”
Supplementary 145 litres (97 kg*) pellet hopper for KOMPAKTA series “KCB 16”and “KCB 19” models.
Supplementary 270 litres (175 kg*) pellet hopper for KOMPAKTA series “KCB 25” and “KCB 32 NEW” models.
Description

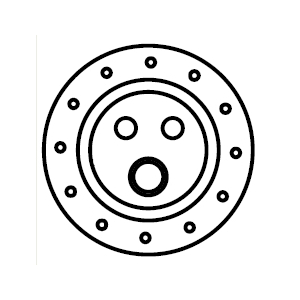

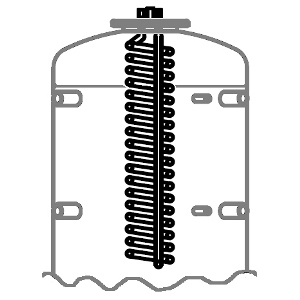

Connections Ø 3/4”. Mounting accessories: n°2 hex nuts, n°2 conical disks, n°2 O-Ring, n°2 distanced washers 5mm. The exchanger is fixed to the plate PF 300 1”1/2 (see Code LAPF300) and inserted from above in the upper part of TRIGENIO puffer. Download the installation mode of the exchanger on the drilled top plate.
To be installed on separately supplied drilled top plate.
I°: (80÷60) [ °C ]
II°: (15÷45) [ °C ] |
SRA 317
3,17 m2 |
SRA 460
4,60 m2 |
|
Potenza | Power | [ kW ] | 40,7 | 58,1 |
Produzione | Production | [ l/h ] | 900 | 1.320 |
Produzione | Production | [ l/1’ ] | 15 | 22 |
Portata | Flow rate | [ l/h ] | 1.700 | 2.300 |
Contenuto | Content | [ l ] | 2,65 | 3,80 |
Pressione d’esercizio
Working Pressure |
[ bar ] | 10 | 10 |
Connessioni | Connections | [ “ ] | 3/4” M | 3/4” M |
Δ P | [ m H2O ] | 4,5 | 4,6 |
L | [ mm ] | 650 | 1000 |
M | [ mm ] | 50 | 50 |
Ø | [ mm ] | 200 | 200 |

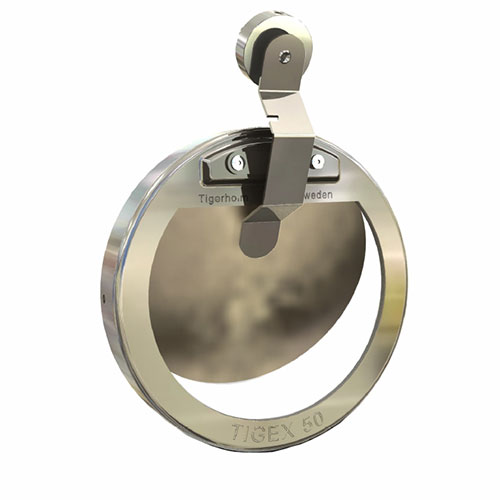

DRAUGHT ADJUSTMENT SHUTTER
“TIGEX 150” Draught adjustment shutters complying with DPR 1390 UNI 7129 and UNI 9615 and manufactured in accordance with DIN 4795 for continuous functioning in flue systems; designed to control the draught. Stainless steel casing.
Discover our range of buffer tanks and Puffers
